AK-TS8L-HD
AK-TS8L-HD is a 4 wire villa video door phone indoor monitor. It has 8" IPS touch screen, support max. 128GB sd card, with motion detection function, internal intercom, snapshot and record functi···
Introduction
AK-TS8L-HD is a 4 wire villa video door phone indoor monitor. It has 8" IPS touch screen, support max. 128GB sd card, with motion detection function, internal intercom, snapshot and record function. AHD 1080P, TVI, CVI, CVBS 4 in 1 signal input. It has external 15V DC or 220V AC power supply for optional.
Indoor Monitor | Model | AK-TS8L-HD |
Screen | 8" IPS touch screen | |
Product Type | AHD (720P&960P&1080P)/CVBS/CVI/TVI Video Input | |
Resolution | 1024(H)*3(RGB)*600(V) | |
Memory | Support Max. 128GB SD card | |
Intercom Mode | Hands-free dual-way communication | |
Conversation duration | 120s | |
WiFi frequency | 2.4Ghz | |
IEEE standard | IEEE 802. 11b/g/n | |
Operation way | Touch screen | |
Power Consumption | 400mA Max. | |
Power Supply | External DC 12-18V or 220V internal power supply | |
Support | 2 call panel + 4 indoor monitor + 2 camera & 2 alarm | |
Material | Acrylic shell | |
Operation Temp | -10℃ +60℃ | |
Installation | Surface mount | |
Standard | PAL/NTSC | |
Unique feature | Glass surface, monitor relay，wireless unlock, 150 meters intercom |

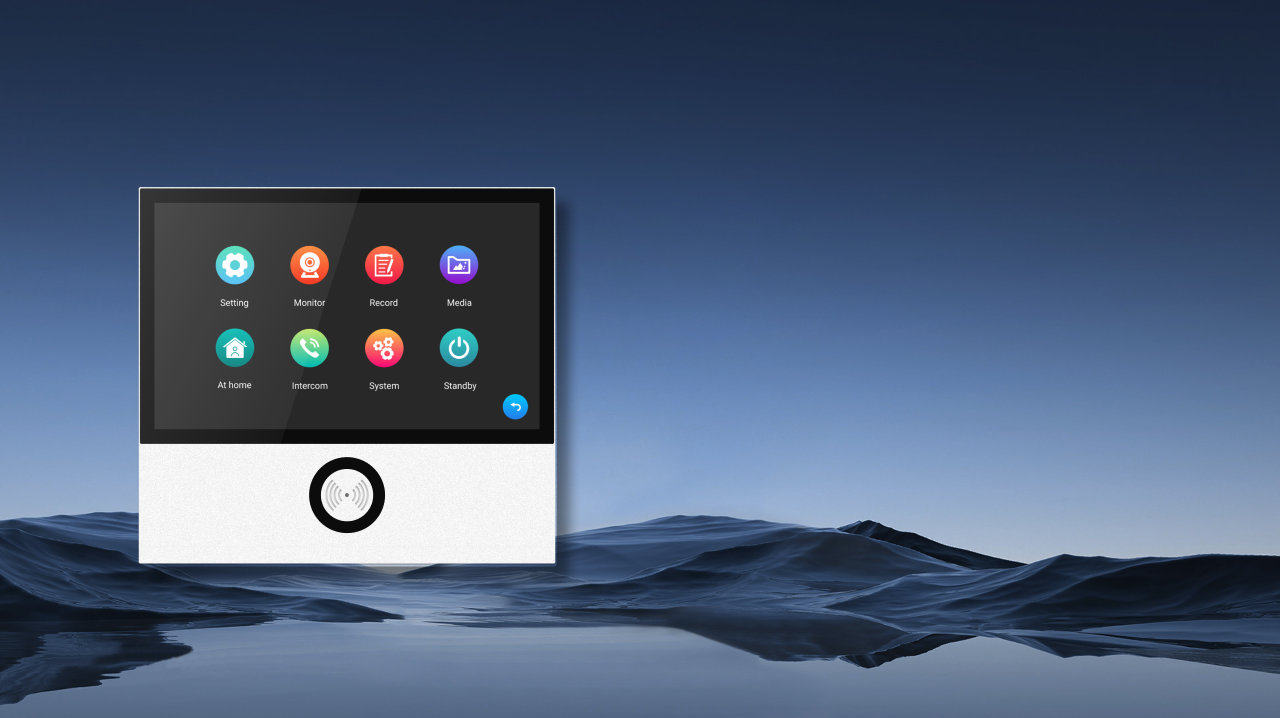

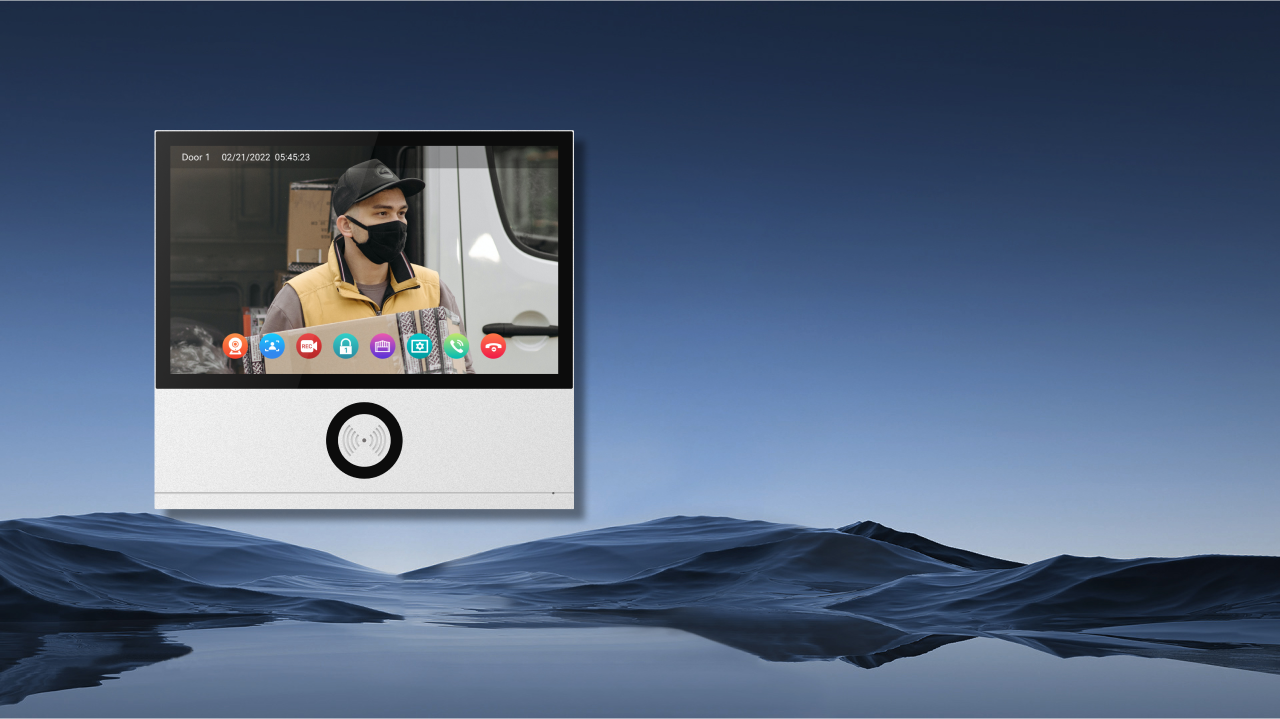

Photos
